Ferrari SF71H, front wing
1/16
Photo by: Giorgio Piola
Ferrari will trial a 2019-style front wing, similar in overall design to its current specification but devoid of the cascade and endplate furniture, while the endplate itself is also simplified. This will give the team some real-world data to work with and feed back into their design considerations for next season.
Ferrari SF71H nose and front wings

2/16
Photo by: Mark Sutton / Sutton Images
A comparison of the 2019-styled wing (top) and the current design (bottom).

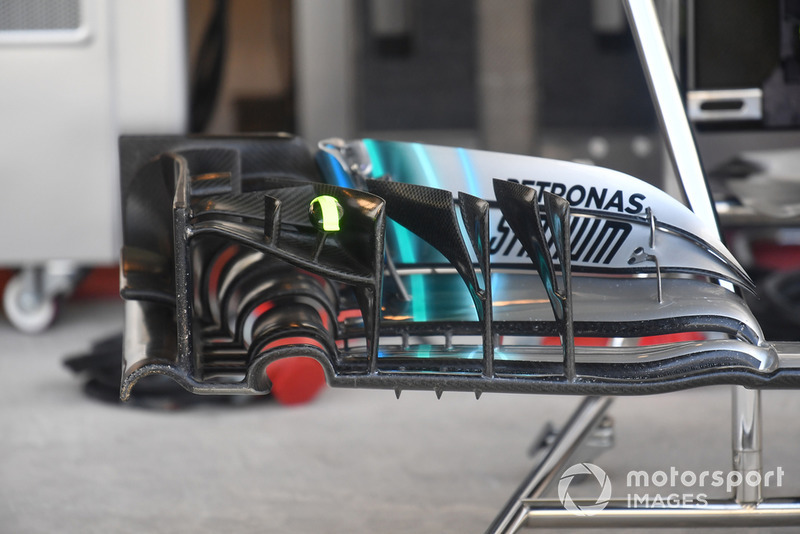

Mercedes-AMG F1 W09 front wing detail

3/16
Photo by: Mark Sutton / Sutton Images
A close-up of the Mercedes W09’s front wing, the design complexity of which we will not see next season.
Haas F1 Team VF-18 nose and front wings

4/16
Photo by: Mark Sutton
The two front wing specifications available to Romain Grosjean, note the alterations made to the upper flap, especially in the region next to the adjuster.
Scuderia Toro Rosso STR13 nose and front wings

5/16
Photo by: Mark Sutton / Sutton Images
Toro Rosso’s front wing design, the complexity level of which is now at the end of its cycle given the much simpler wings that’ll be used next season.

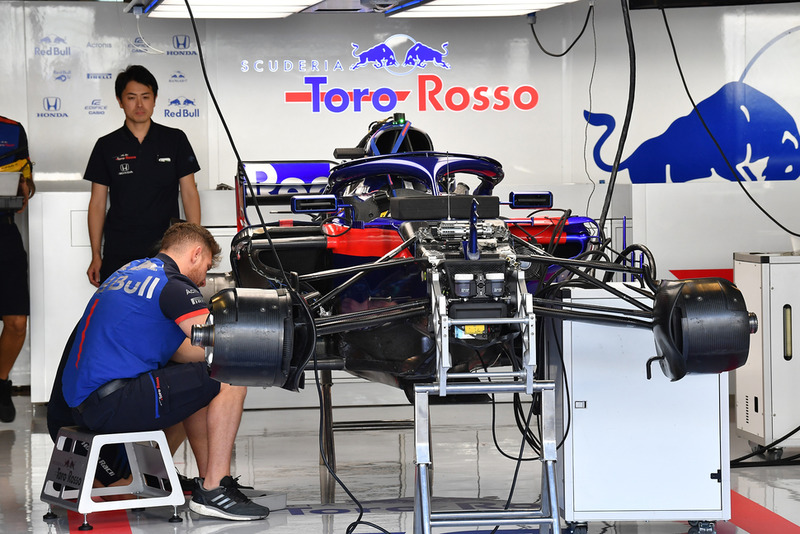

Scuderia Toro Rosso STR13 in the garage

6/16
Photo by: Mark Sutton
The Toro Rosso mechanics and Honda technicians prepare the STR13 for its last outing of the season.

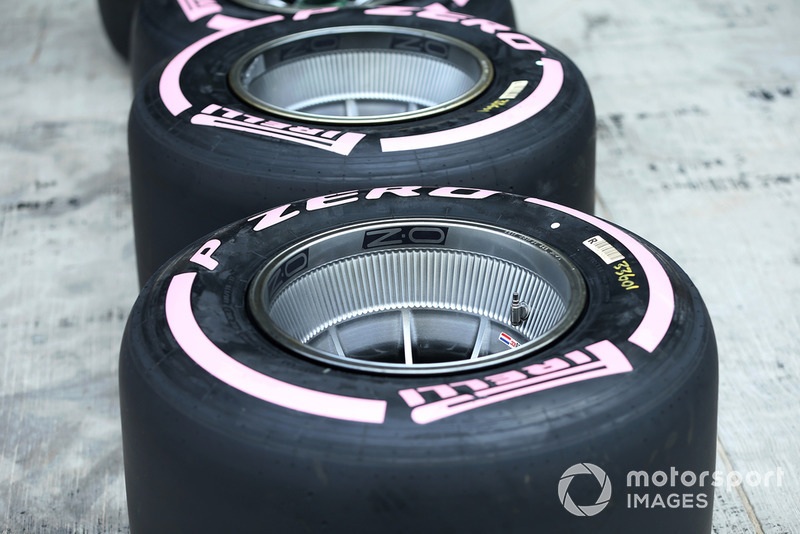

Red Bull wheel rims

7/16
Photo by: Lionel Ng / Sutton Images
Red Bull’s ‘ribbed’ rear wheels, used to help regulate the temperature of the rim and by virtue of this the tyre.
Ferrari SF71H, cockpit

8/16
Photo by: Giorgio Piola
An overview of the Ferrari SF71H’s cockpit, halo and the halo-mounted mirrors.

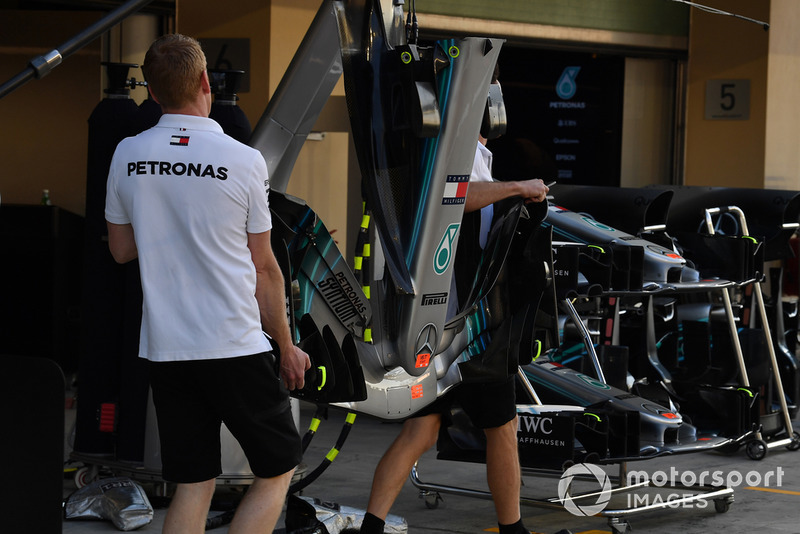

Mercedes-AMG F1 W09 front wing

9/16
Photo by: Mark Sutton / Sutton Images
An unusual view of the Mercedes W09’s nose shows the overall scope of the ‘cape’.

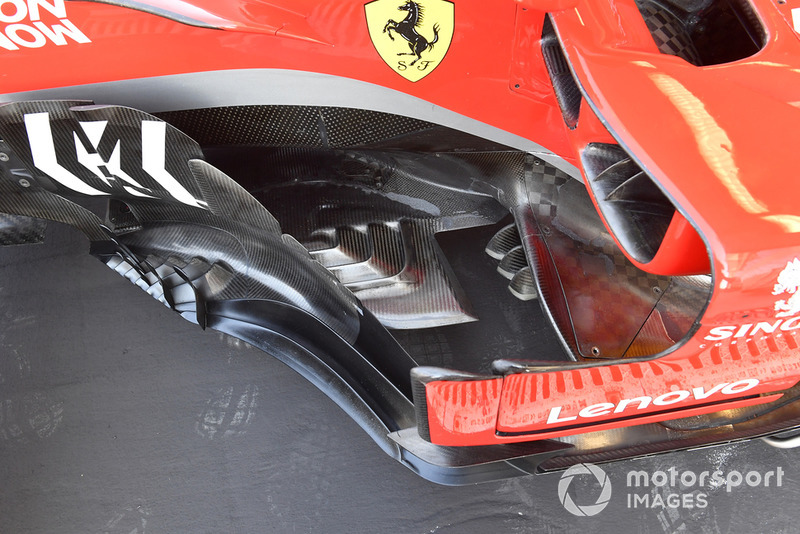

Ferrari SF71H bargeboard detail

10/16
Photo by: Mark Sutton / Sutton Images
A close-up of the SF71H, its upturned floor and the three strakes placed in its leading edge which help to guide the airflow that passes by.
Ferrari SF71H nose aero detail

11/16
Photo by: Mark Sutton / Sutton Images
A close-up of the SF71H’s ‘S’-duct inlet which itself is subdivided into several sections.

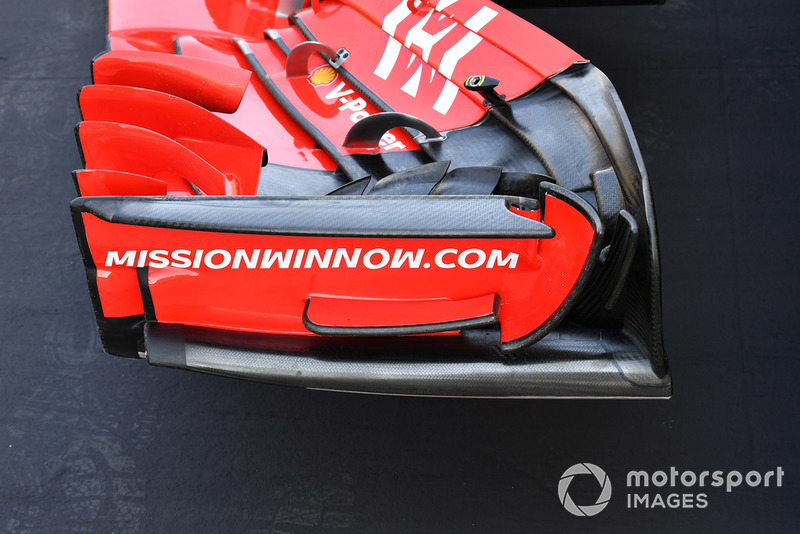

Ferrari SF71H front wing detail

12/16
Photo by: Mark Sutton / Sutton Images
The SF71H’s front wing, with its divided endplate and raised outer footplate, which is reminiscent of the design used by Red Bull for some time now.
Ferrari SF71H aero detail

13/16
Photo by: Mark Sutton / Sutton Images
A fantastic view of the SF71H’s turning vanes, note that the forward elements are mounted to the nose, whilst the rearward ones occupy space under the chassis.

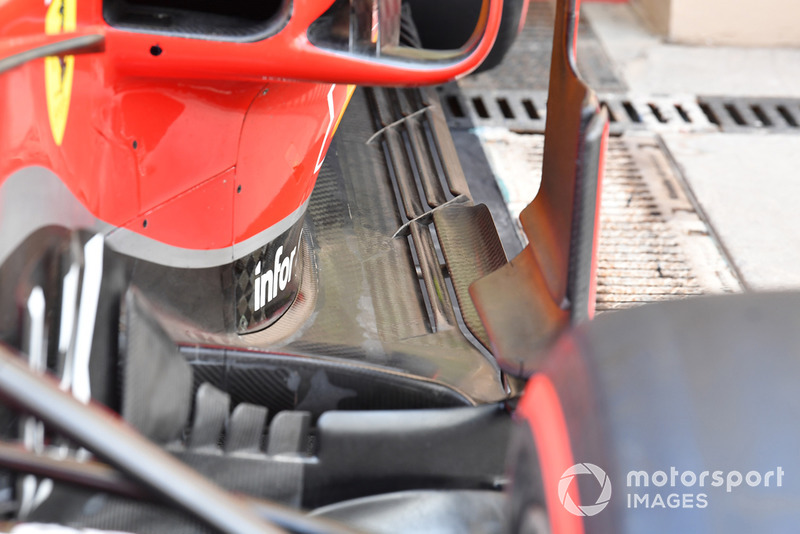

Ferrari SF71H rear floor detail

14/16
Photo by: Mark Sutton / Sutton Images
Looking back down the length of the Ferrari SF71H we can see the level of detail now present in the outer 200mm of the floor, opened up when the wording of the regulations were not amended but the width of the floor was.
Ferrari SF71H bargeboard detail

15/16
Photo by: Mark Sutton / Sutton Images
A great shot looking down over the bargeboards, splitter extension and leading edge of the floor, showing off the complexity of this area of the floor.
McLaren MCL33

16/16
Photo by: Mark Sutton / Sutton Images
This shot not only shows us the one-off livery to be used by Fernando Alonso in Abu Dhabi but also the complexity of the floor’s outer section.
